Description

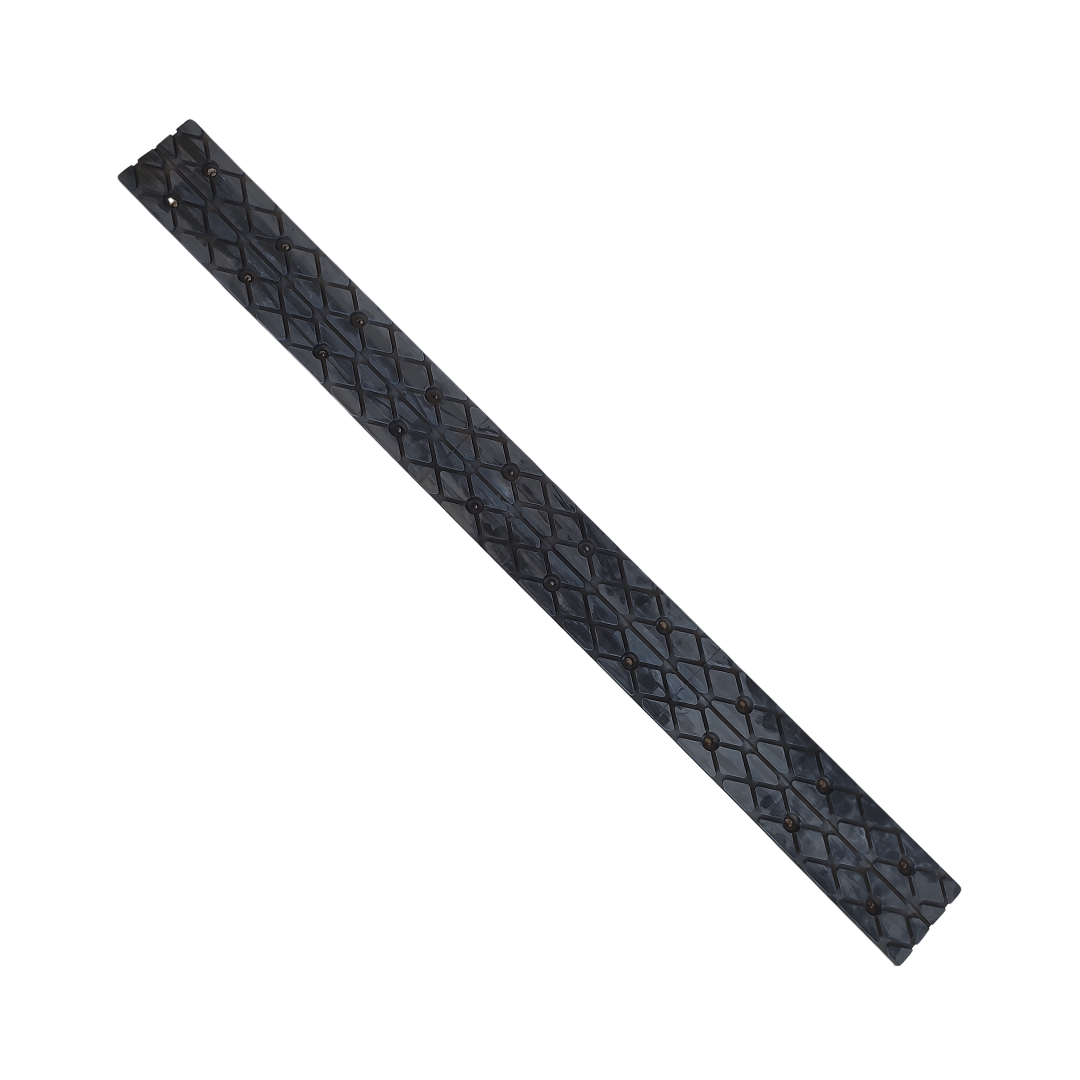

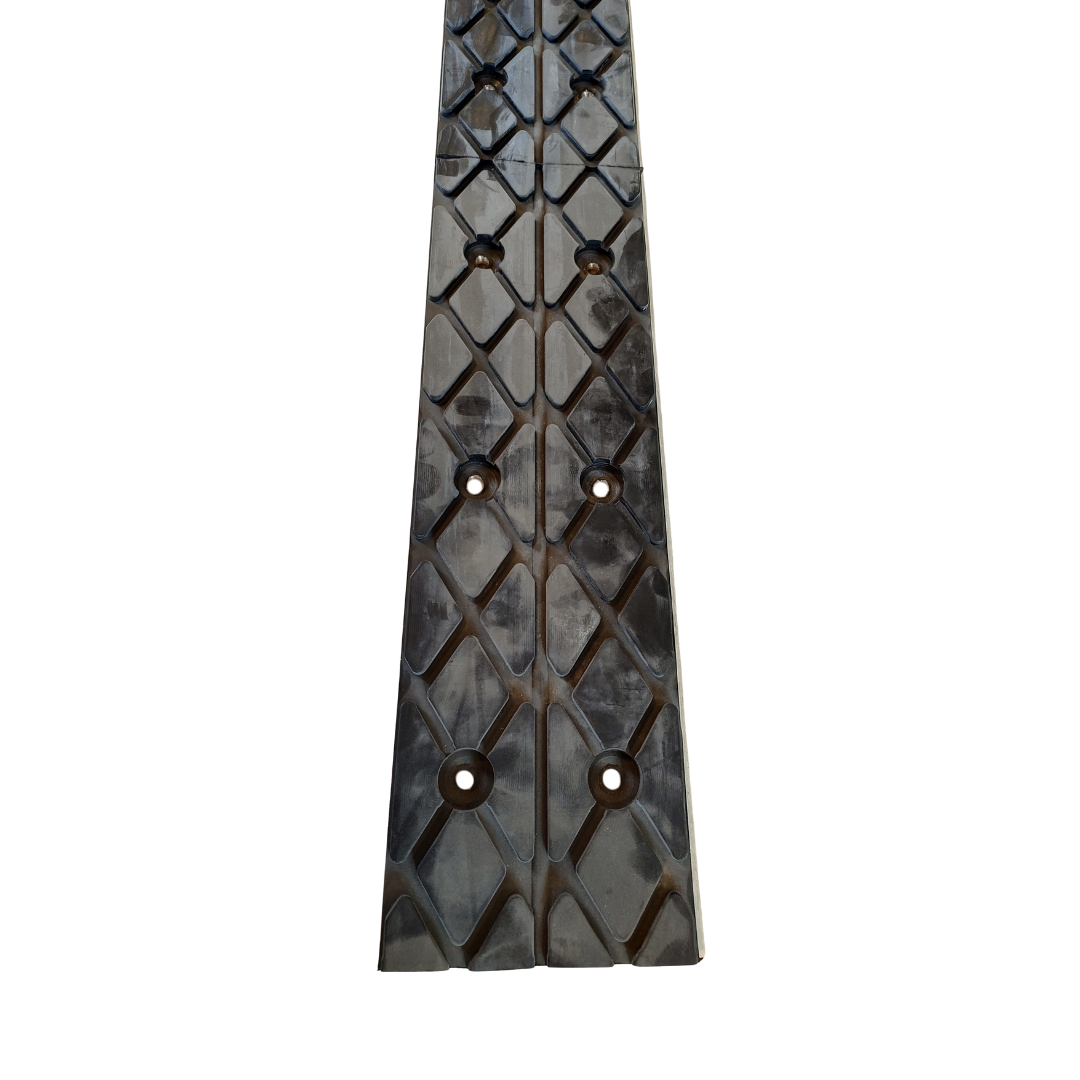

High-friction pulley bar / drum lagging with diamond-patterned rubber on a lightweight aluminum core. Provides maximum traction, minimizes belt slippage, and can be mounted directly onto the drive or tail pulley using self-tapping screws.

Why choose this pulley bar?

• Extremely wear-resistant rubber lagging in diamond-patterned rubber increases friction and reduces belt slippage, especially on inclined conveyors and bucket elevators.

• Lightweight yet robust aluminum core reduces pulley load while providing high structural strength.

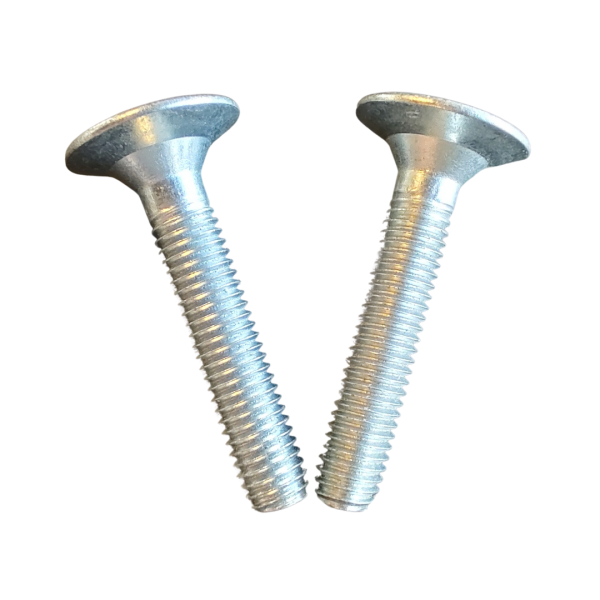

• Quick installation: Secured with M8 self-tapping screws after pre-drilling with a 7.4 mm drill bit.

  • 20 x M8 screws are included with the pulley bar, but the drill bit is not. Additional screws can be purchased individually here.

• Easy maintenance: Individual bars can be replaced separately, reducing downtime.

Technical specifications

• Dimensions (H × W × L): 16/20 × 140 × 1.500 mm

• Construction: Aluminum profile embedded in diamond-patterned rubber.

• Typical applications: Drive pulleys, especially on inclined conveyors, bucket elevators, and other installations requiring high friction.

• Standard rubber hardness: ~60 Shore A

• Temperature range: –20 °C to +70 °C (indicative)

• Sales unit: 1 piece (contact us for pallet or bulk pricing)

Benefits for your operation

• Maximizes uptime – quick replacement shortens downtime periods

• Extends belt life by preventing wear caused by slippage

• Reduces energy consumption by requiring less counter-tension, as the pulley grips the belt effectively from the start
